1 Objective

This tutorial demonstrates the complete roundtrip workflow for developing analysis steps within RStudio using the improVerse integration. The workflow illustrates how to:

  • Access existing analysis trees and datasets from the improve repository
  • Create consumer steps that process repository data
  • Develop and test R scripts locally within RStudio
  • Execute steps in the validated run environment
  • Build multi-step workflows for data processing and visualization

2 Prerequisites

Required Packages:

  • improveR >= 4.4.0
  • improveRcontributions >= 4.4.0
  • improveRstudio >= 4.4.0

Environment Configuration:

  • Connected improve repository with appropriate access permissions
  • RStudio with improVerse addins installed (improveRstudio)
  • Configured runserver for step execution

3 Workflow Overview

This tutorial demonstrates a two-step workflow for concentration analysis:

  1. Data Cleaning Step: Processes raw concentration data and generates a cleaned dataset
  2. Visualization Step: Creates concentration plots from the cleaned data

The workflow showcases local development within RStudio integrated with repository-managed version control and validated execution environments.

4 Launching the improVerse Integration

4.1 Starting the Addin

Access the improVerse integration through the RStudio Addins menu:

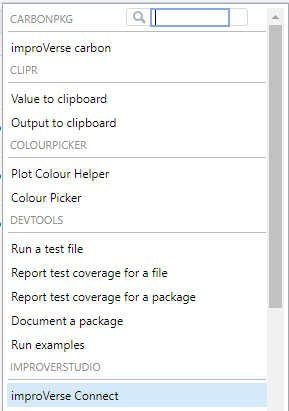

Figure 1: Launch the improVerse Connect addin from the RStudio Addins menu

The improVerse integration opens in the RStudio Viewer pane, providing access to repository resources and step management functionality.

4.2 Selecting an Analysis Tree

Navigate to the target analysis tree containing the source data:

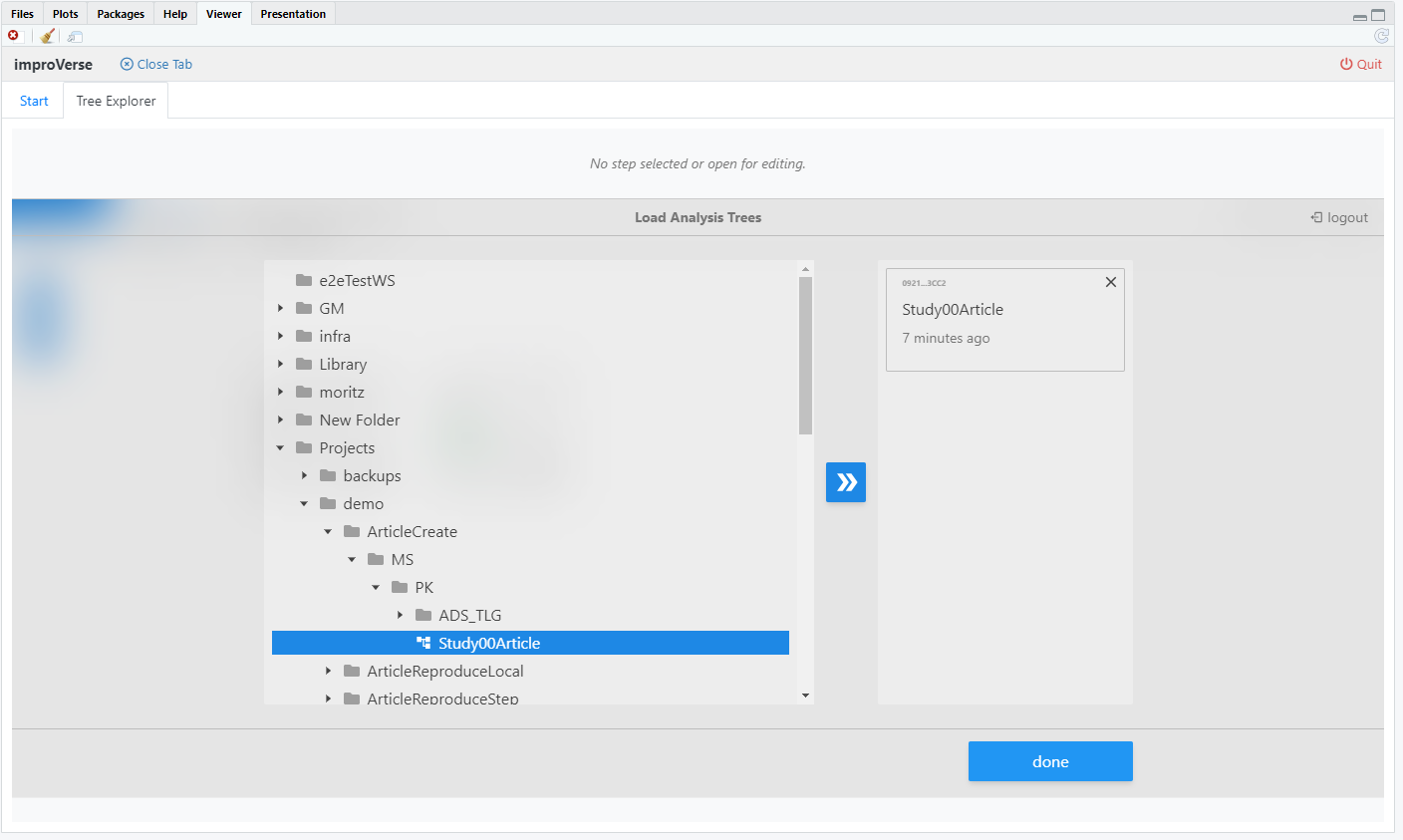

Figure 2: Select the analysis tree from the Tree Explorer and confirm with Done

The selected tree becomes the active context for subsequent operations. The integration displays the tree structure and available steps.

5 Step 1: Data Cleaning Workflow

5.1 Inspecting Source Data

Viewing Step Details

Before creating a consumer step, examine the available data outputs from existing steps:

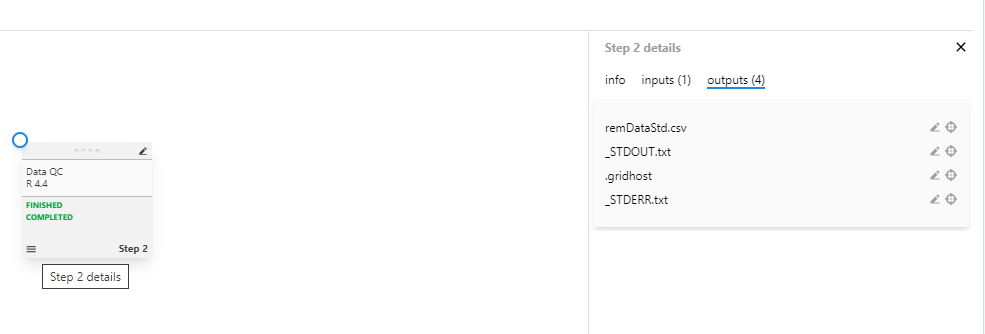

Figure 3: View Step 2 details showing available outputs including remDataStd.csv

The Step Details panel displays three tabs:

  • info: Step metadata, description, and rationale
  • inputs: Files and data provided to the step
  • outputs: Generated files including datasets, logs, and results

In this example, Step 2 contains the dataset remDataStd.csv which will serve as input for the data cleaning step.

5.2 Creating a Consumer Step

Initiating Step Creation

Consumer steps process outputs from existing steps, establishing dependencies within the workflow:

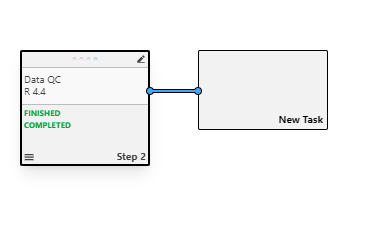

Figure 4: Click “create task” to initiate a new consumer step, append it at the right side of Step 2

Configuring the Consumer Step

Assign the source dataset and configure step execution parameters:

Figure 5: Consumer task creation interface

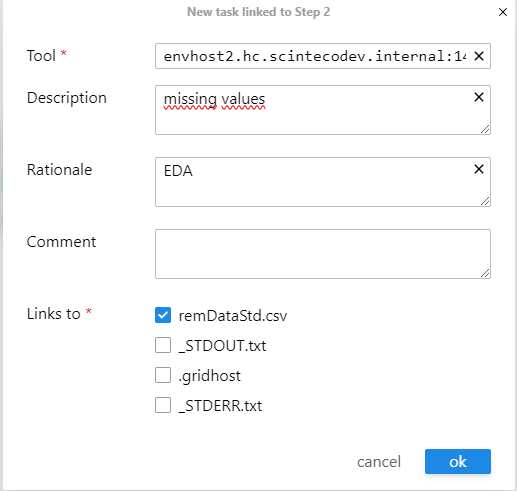

Figure 6: Configure the consumer step with dataset assignment, tool specification (Rscript), description, and rationale

Key Configuration Elements:

  • Input Assignment: Link remDataStd.csv from Step 2 as the input dataset
  • Tool: Set to Rscript for R script execution
  • Description: Provide a concise summary of the step’s purpose
  • Rationale: Document the scientific or analytical justification

5.3 Attaching RStudio Control

Enabling RStudio Integration

The improVerse integration can control RStudio IDE operations when attached:

Figure 7: Attach RStudio to enable IDE control from the improVerse integration

Attach Mode Capabilities:

  • Navigate to workspace directories
  • Switch working directory context
  • Manage global environment
  • Open files in the source editor
  • Synchronize IDE state with step context

This integration enables seamless transitions between repository-managed steps and local development.

5.4 Opening the Step Workspace

Checking Out Step Files

The “open step” operation checks out the step to a dedicated workspace directory:

Figure 8: Open the step to check out files to the local workspace

Workspace Structure:

workspace/
└── [tree-name]/
    └── [step-name]/
        ├── remDataStd.csv    # Input dataset
        └── [working files]    # Scripts and outputs

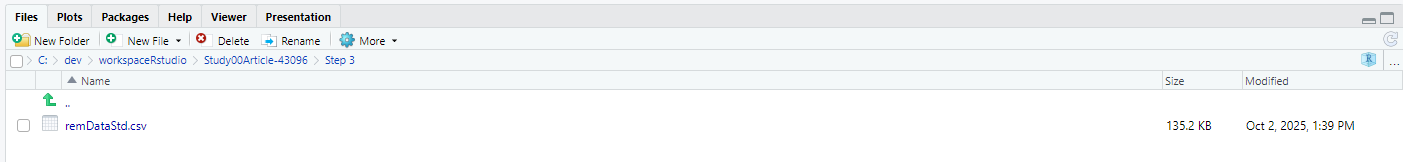

Figure 9: RStudio switches to the step workspace directory, displaying checked-out files

RStudio automatically:

  • Navigates to the step workspace directory
  • Updates the Files pane to show step contents
  • Sets the working directory to the step location

The workspace provides an isolated environment for script development with direct access to step input data.

5.5 Local Development

Script Development and Testing

Develop the data cleaning script within RStudio using standard development workflows:

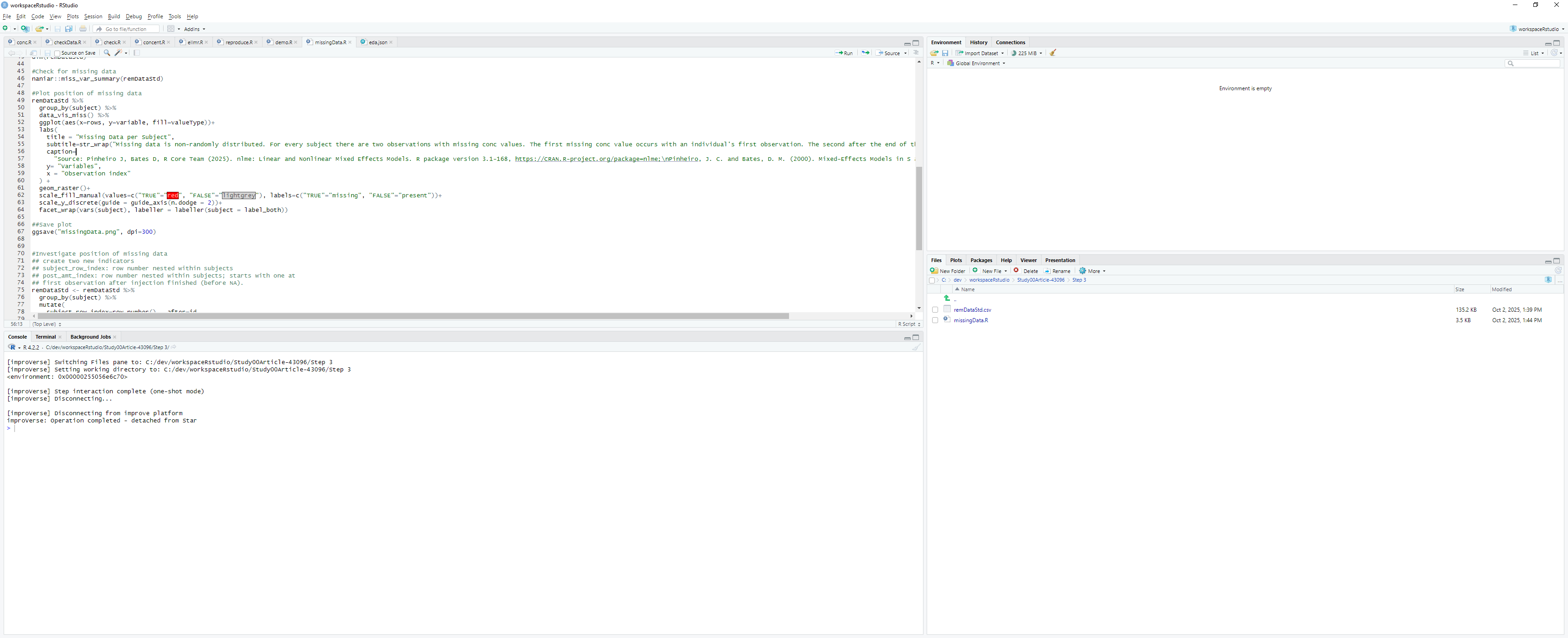

Figure 10: Develop, execute, test, and debug the R script locally within RStudio

Development Workflow:

  1. Script Creation: Write R code to process remDataStd.csv
  2. Execution: Run the script interactively within RStudio
  3. Testing: Verify outputs and intermediate results
  4. Debugging: Use RStudio debugging tools as needed
  5. Iteration: Refine the script until desired results are achieved

Local Execution Benefits:

  • Immediate feedback during development
  • Access to RStudio debugging tools
  • Interactive exploration of data
  • Rapid iteration without repository overhead

The script generates a cleaned dataset for downstream analysis.

5.6 Pushing and Executing

Uploading to Repository

After local development completes, push the script to the repository and execute in the validated environment:

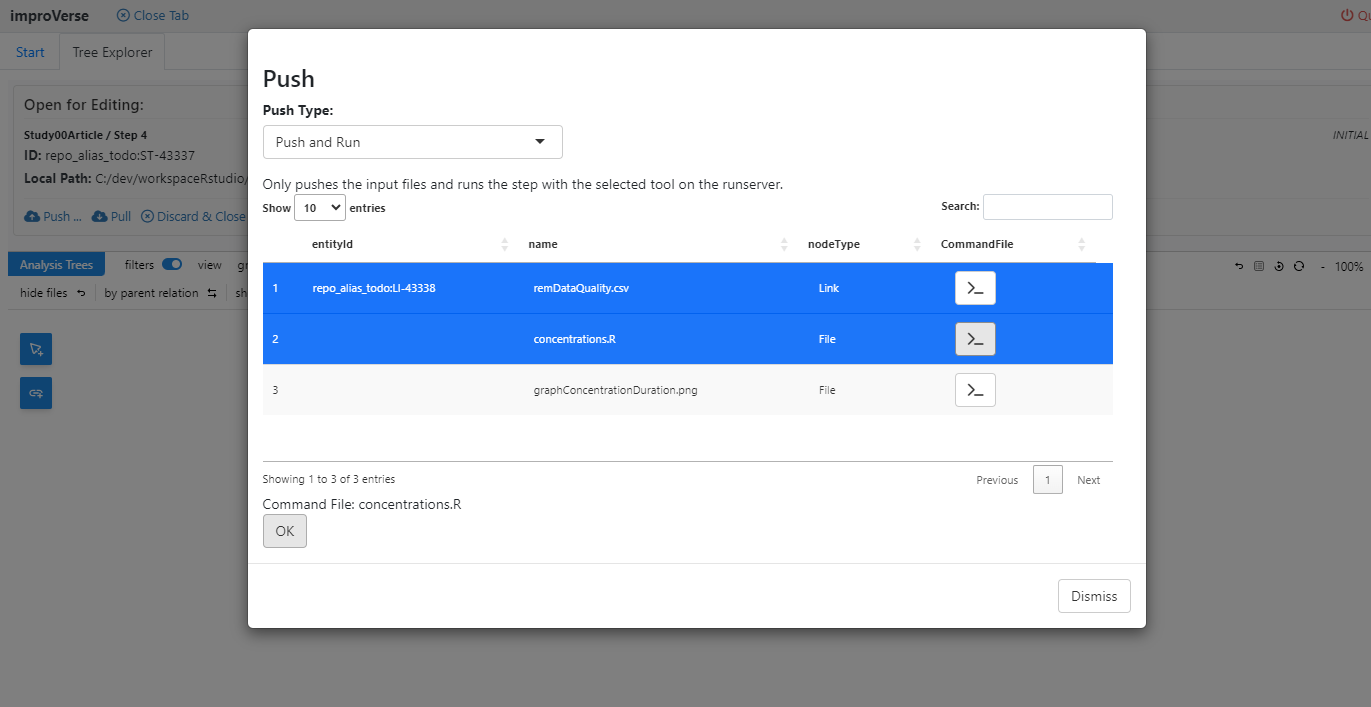

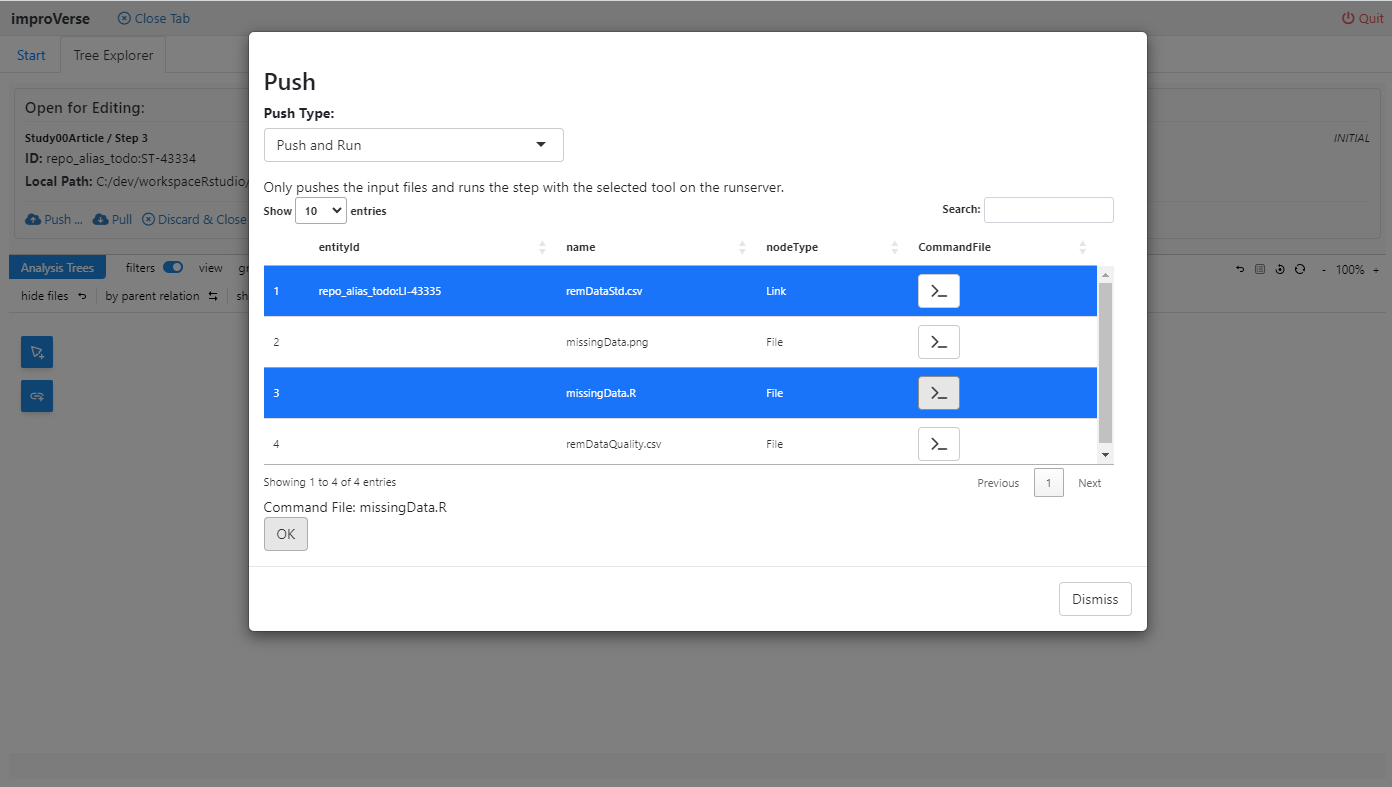

Figure 11: Select “Push and Run” to upload files and execute the step

Push and Run Process:

  1. File Selection: Choose input files to upload (script and dataset)
  2. Upload: Transfer files to the repository step
  3. Validation: Verify file integrity and completeness
  4. Execution: Submit the step to the configured runserver
  5. Environment: Execute in the validated, controlled run environment

This operation ensures reproducibility by executing the step in a standardized environment independent of the local development machine.

Monitoring Execution

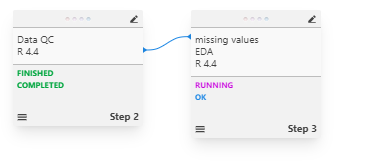

Figure 12: Step execution status displayed during processing

The integration displays execution status and provides access to real-time logs during step processing.

5.7 Verifying Outputs

Checking Generated Files

After execution completes, verify that expected outputs were created:

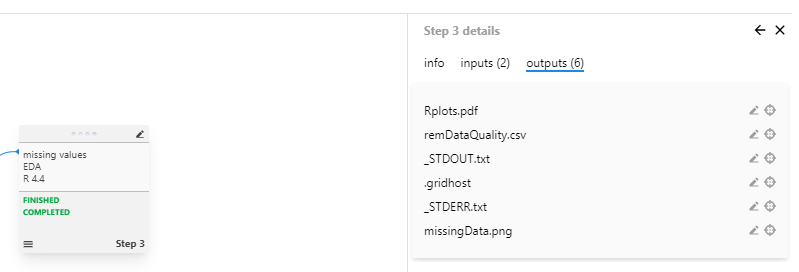

Figure 13: Verify that output files were successfully generated

The outputs tab lists all files generated during step execution, including:

  • Cleaned datasets
  • Processing logs (STDOUT, STDERR)
  • Intermediate results
  • Generated visualizations

Inspecting Results

Preview generated outputs directly within the integration:

Figure 14: Preview generated outputs in the improVerse integration editor

The integrated editor provides immediate visualization of results without requiring file downloads, enabling rapid validation of step outputs.

6 Step 2: Concentration Visualization

6.1 Creating the Visualization Step

The second step follows the same workflow pattern, consuming the cleaned dataset from Step 1:

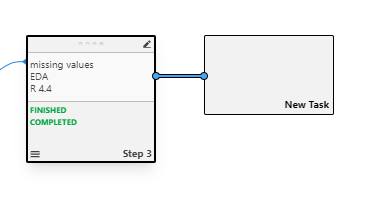

Figure 15: Create a second consumer step for concentration visualization

Configuration

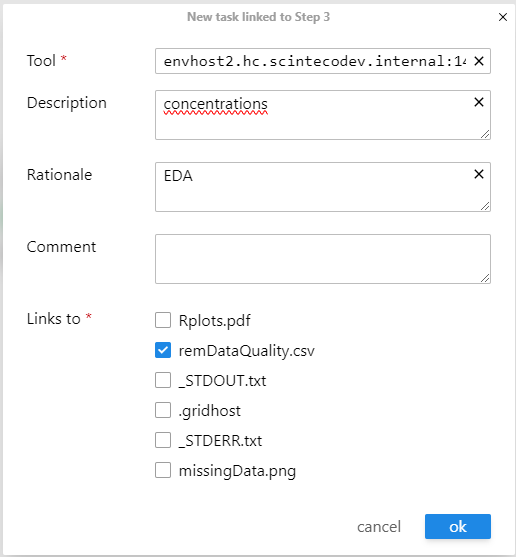

Figure 16: Configure the visualization step with the cleaned dataset as input

Step Configuration:

  • Input: Cleaned dataset from Step 1
  • Tool: Rscript
  • Purpose: Generate concentration visualizations
  • Rationale: Visualize temporal and spatial concentration patterns

6.2 Development and Execution

Local Script Development

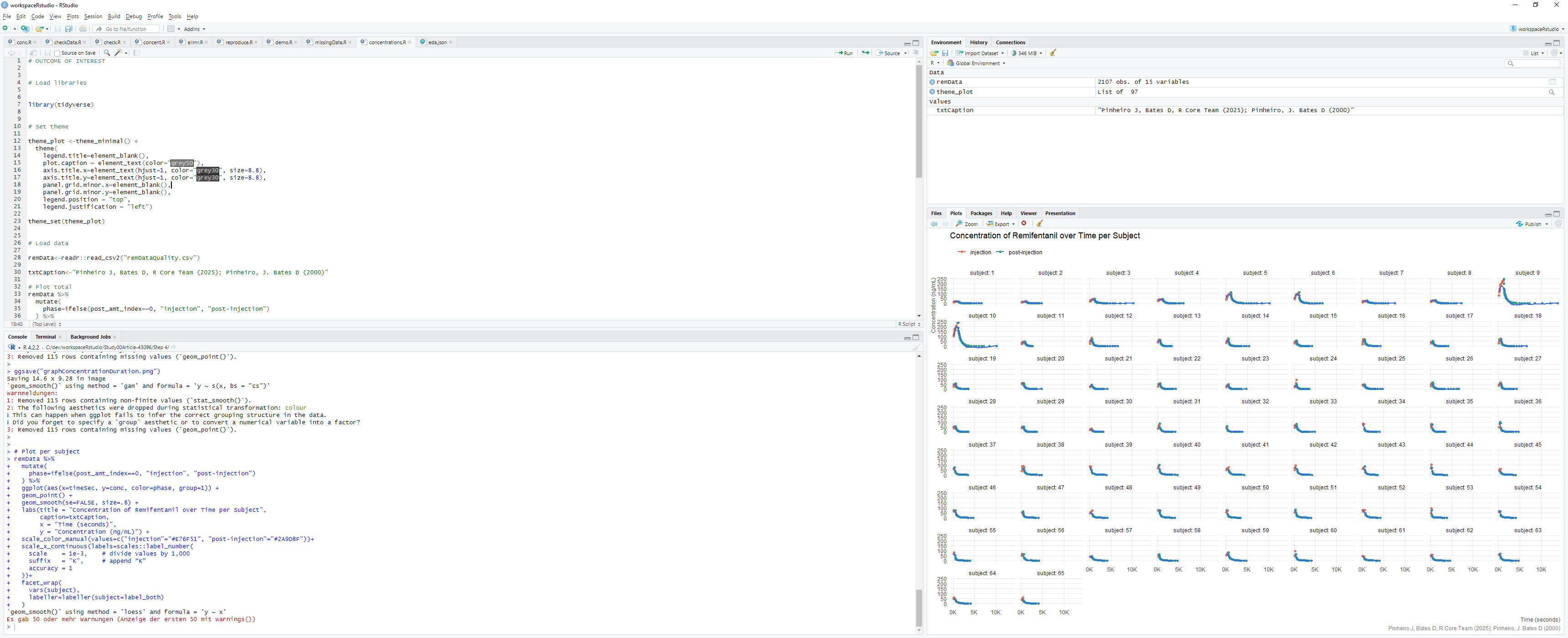

Figure 17: Develop the visualization script locally

The development process mirrors Step 1:

  1. Open the step workspace
  2. Develop plotting script
  3. Test visualization locally
  4. Refine plot parameters and aesthetics
  5. Verify output quality

Push and Execute

Figure 18: Upload and execute the visualization step

The script and cleaned dataset are pushed to the repository, and the step executes in the validated environment, generating the final concentration plots.

7 Workflow Completion

7.1 Final Result

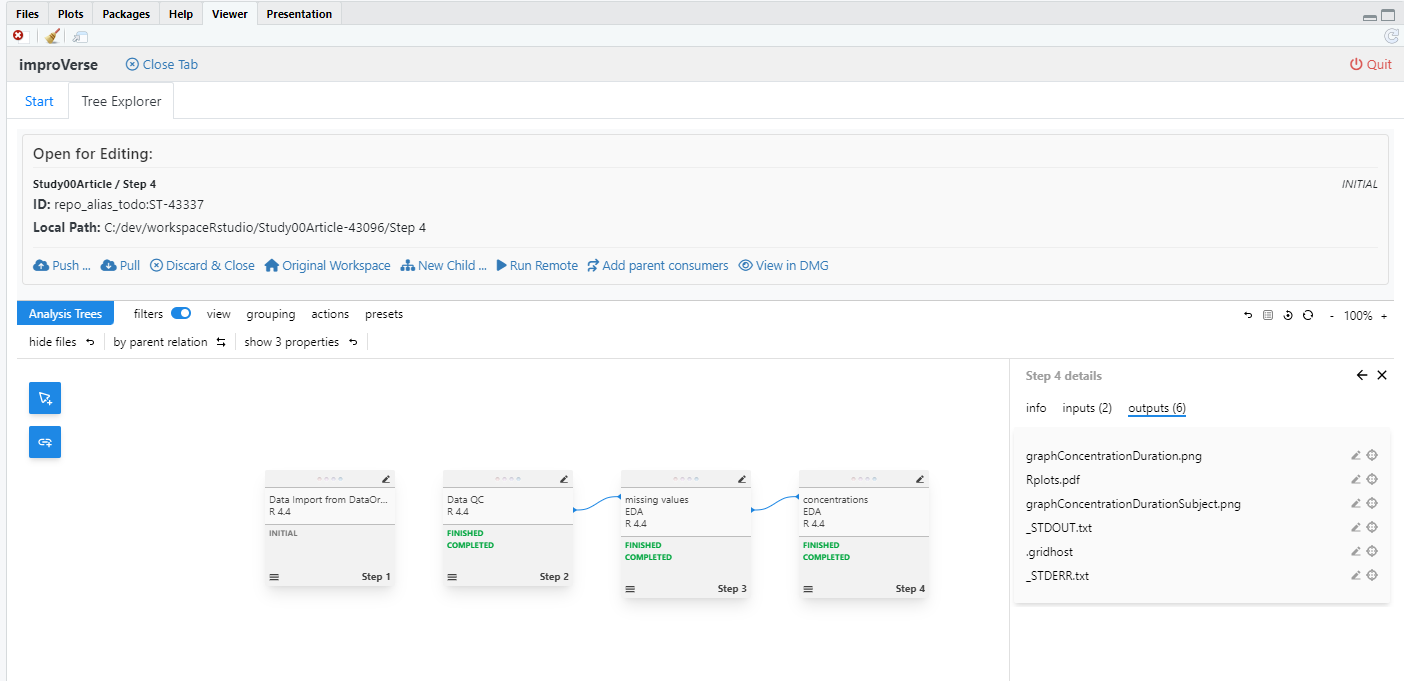

Figure 19: Completed two-step workflow with data cleaning and visualization

The completed workflow demonstrates:

  • Step Dependencies: Step 2 consumes output from Step 1
  • Validated Execution: All steps executed in controlled environments
  • Reproducibility: Complete execution history and versioned inputs
  • Traceability: Clear lineage from raw data through cleaning to visualization

8 Workflow Architecture

8.1 Key Concepts

Local Development vs. Validated Execution

The RStudio integration implements a hybrid development model:

Local Development Environment:

  • Unrestricted RStudio IDE access
  • Interactive execution and debugging
  • Rapid iteration and testing
  • Access to local computing resources

Validated Execution Environment:

  • Controlled runserver environment
  • Versioned tool dependencies
  • Standardized execution parameters
  • Reproducible results independent of developer machine

Workspace Management

Workspace Directory Structure:

workspace/
└── [tree-name]/          # Analysis tree name
    ├── [step-1-name]/    # First step workspace
    │   ├── inputs/       # Input data and files
    │   ├── script.R      # Development script
    │   └── outputs/      # Generated outputs
    └── [step-2-name]/    # Second step workspace
        ├── inputs/       # Input from step 1
        ├── script.R      # Visualization script
        └── outputs/      # Generated plots

Each step maintains an isolated workspace with explicit input/output separation.

Step Lifecycle

  1. Creation: Define step parameters and dependencies
  2. Checkout: Download input files to local workspace
  3. Development: Create and test script locally
  4. Push: Upload script and files to repository
  5. Execution: Run in validated environment
  6. Validation: Verify outputs and execution logs
  7. Completion: Step outputs become available for downstream steps

8.2 Best Practices

Step Organization

Granularity:

  • Create focused steps with single, well-defined purposes
  • Avoid monolithic scripts that perform multiple unrelated operations
  • Balance step granularity with workflow complexity

Documentation:

  • Provide clear descriptions summarizing step objectives
  • Document rationale explaining scientific or analytical justification
  • Include comments within scripts for implementation details

Dependency Management:

  • Explicitly declare all input dependencies
  • Use consumer steps with links to establish clear data lineage
  • Avoid implicit dependencies on global state or external resources

Development Workflow

Local Testing:

  • Thoroughly test scripts locally before pushing to repository
  • Verify all edge cases and error conditions
  • Validate outputs against expected results

Version Control:

  • Use meaningful commit messages when updating steps
  • Document changes in step rationale when modifying existing steps
  • Maintain backward compatibility when possible

Resource Management:

  • Consider computational requirements when developing scripts
  • Optimize for execution in the runserver environment
  • Handle large datasets efficiently

Reproducibility

Explicit Inputs:

  • All input data must be explicitly declared and versioned
  • Avoid reading files from arbitrary paths
  • Use relative paths within the step workspace

Environment Independence:

  • Scripts should execute identically in local and validated environments
  • Avoid dependencies on user-specific configurations
  • Explicitly specify all required packages and versions

Output Documentation:

  • Generate self-documenting outputs when possible
  • Include metadata describing processing parameters
  • Create README files for complex output structures

9 Advanced Features

9.1 RStudio Attach Mode

The attach functionality enables bidirectional integration between RStudio and the improVerse system:

IDE Control:

  • Programmatic navigation to workspace directories
  • Automatic working directory synchronization
  • File opening in source editor
  • Global environment management

Use Cases:

  • Streamlined workflow navigation across multiple steps
  • Consistent development environment setup
  • Integration with custom addins and extensions

Session Management:

  • One-shot attach: Disconnects after single step operation
  • Persistent attach: Maintains connection across operations

9.2 Multi-Step Workflows

Complex analyses may require multiple sequential or parallel steps:

Sequential Dependencies:

Step 1 (Data Import)
  └─> Step 2 (Data Cleaning)
       └─> Step 3 (Statistical Analysis)
            └─> Step 4 (Report Generation)

Parallel Processing:

Step 1 (Data Import)
  ├─> Step 2a (Analysis A)
  ├─> Step 2b (Analysis B)
  └─> Step 2c (Analysis C)
       └─> Step 3 (Combine Results)

Branch and Merge:

Step 1 (Data Preparation)
  ├─> Step 2a (Method A)
  └─> Step 2b (Method B)
       └─> Step 3 (Comparison)

9.3 Step Templates and Reuse

For repetitive analysis patterns:

Template Steps:

  • Create generic step/workflow templates for common operations
  • Parameterize inputs and configuration
  • Reuse across multiple projects

Workflow Extraction:

  • Extract proven workflows from completed projects
  • Apply to new datasets with minimal modification
  • Maintain consistency across analyses

10 Troubleshooting

10.1 Common Issues

Step Execution Failures

Symptom: Step fails in validated environment but succeeds locally

Causes:

  • Missing package dependencies in runserver environment
  • Hardcoded paths specific to local machine
  • Reliance on interactive input or user intervention
  • Insufficient memory or computational resources

Resolution:

  • Review execution logs (STDERR.txt) for error messages
  • Verify all dependencies are declared
  • Use relative paths within workspace
  • Ensure non-interactive execution

File Synchronization Issues

Symptom: Files not appearing in workspace after checkout

Causes:

  • Network connectivity issues
  • Insufficient local disk space
  • Permission errors on workspace directory

Resolution:

  • Verify repository connection status
  • Check available disk space
  • Verify workspace directory permissions

Output Validation Failures

Symptom: Expected outputs not generated after execution

Causes:

  • Script errors during execution
  • Incorrect output file paths

Resolution:

  • Review STDOUT.txt and STDERR.txt logs
  • Verify script generates files in working directory

11 Summary

This tutorial demonstrated the complete RStudio workflow integration for developing validated, reproducible analysis steps. The key concepts include:

Development Model:

  • Local development with full RStudio IDE capabilities
  • Validated execution in controlled runserver environments
  • Seamless transition between development and production

Workflow Management:

  • Consumer steps establishing clear data dependencies
  • Isolated workspaces for each step
  • Explicit input/output management

Reproducibility:

  • Versioned inputs and execution environments
  • Complete execution history and logs
  • Standardized tool configurations

The improVerse RStudio integration enables data scientists to leverage familiar development tools while maintaining the rigor and reproducibility required for validated analytical workflows.
